Product Description
Date Sheet
Drawing


Model

EMTBC4S-6/12

    Conveyor Type

Telescopic Belt Conveyor

    Retracted length (A)

6,000mm

    Extension (B)

12,000mm

    Full extended total length (C)

18,000mm

    Height

1,200mm

    Belt Width

800mm

    Conveyor Width

2,220mm

    Belt Direction

Loading and Unloading

    Inclination Angle

0~4 degree

    Loading Capacity

Max 60KG/Meter

    Belt speed

0~40M/minute(adjustable)

    Estimate Empty Weight

6T

Rollers


Belt driving slave roller Dia

102mm

Belt driving roller Dia

196mm

Support roller Dia

50mm

Rubber Belt


Width

800 mm

Material

HQ-multiply PVC belt

Total Thickness

3mm

Grade

Industry

Color

black

Gear Motor for Belt running


Brand

SEW/NORD

Electric Supply (Volt)

According to input power

Electric Supply (Phase / Hz / Pole)

3 phase/50Hz/4poles

Power (kW)

3.0KW

Gear Motor for Telescopic Movement


Brand

SEW/NORD

Electric Supply (Volt)

According to input power

Electric Supply (Phase / Hz / Pole)

3 phase/50Hz/4poles

Power (kW)

0.75KW

Electrical Control


    Controller

SIEMENS

    VFD

Schneider/DELTA

    DC power

MW

    Phase Sequence

Schneider

    Switch

DELIXI

    Buttons

YIJIA

    Joystick

Schneider

    Optical Sensor

SICK

Material of Construction


Frame

SPCC,thickness 6.0mm

Top Plate

SPCC,thickness 4.0mm

Conveyor Support

Square tube 3.0t

Belt driving roller

C45, dia 196mm,Rubber coating

Belt driving slave roller

C45, dia 102mm

Support roller

C45, dia 50mm

Hydraulic Power Unit


Motor and Pump

200V~480V,0.75KW,3.2CC

Cylinder Specification & Qty

Dia 63mm,16MPa,2pcs/set

    Rated stroke

340mm

Painting


Color (default)

Blue (RAL 5015),other available

Surface coating

Powder coating

Installation


Install type

Movable by motor

Temperature

-20~+50°C

Humidity

35-85% rH

Warranty


    Telescopic conveyor

1 year (normal using)

    Maintains parts available

At least 10years

Important Notice:

This is standard model,we could offer the special design according to customers site condition,please contact email lee@wisedock.cn

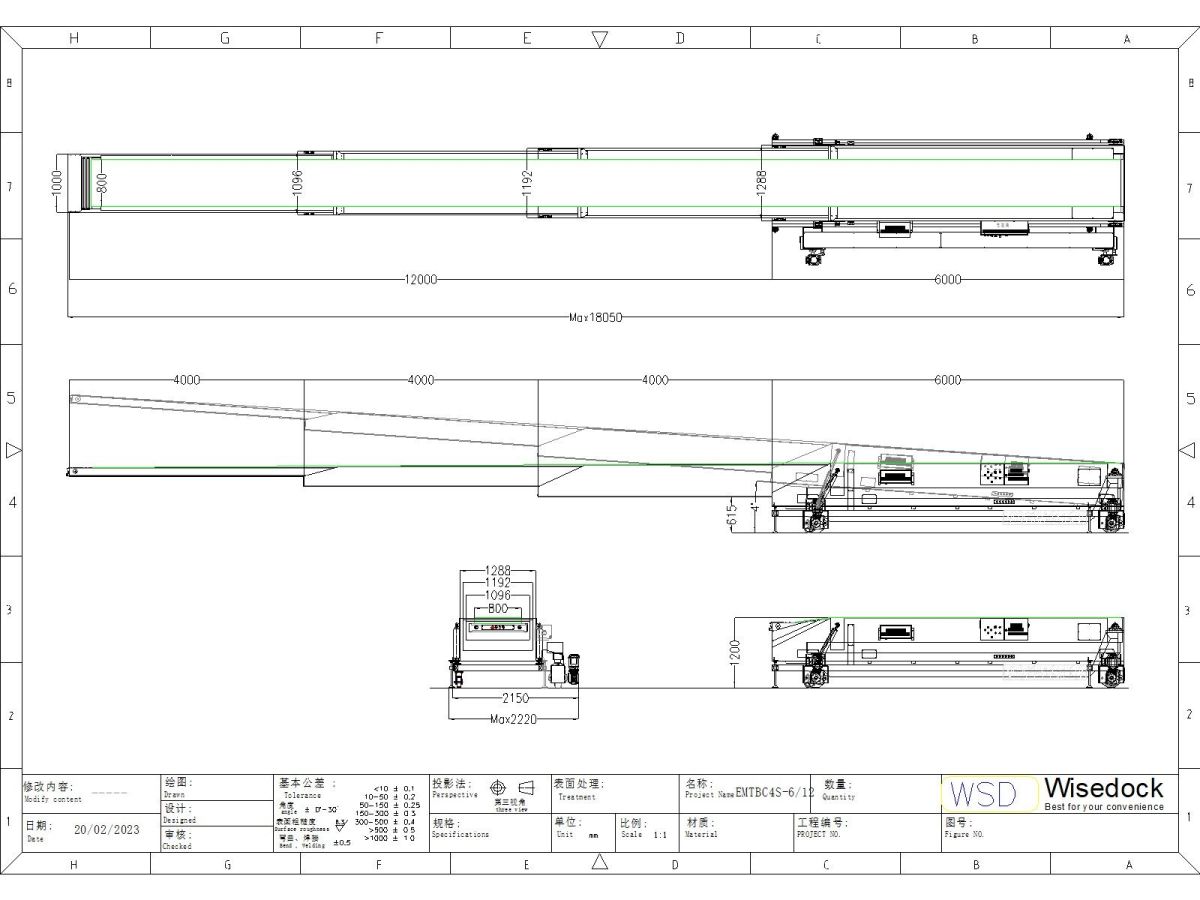

Wisedock telescopic conveyor EMTBC4S-6-12 drawing.
